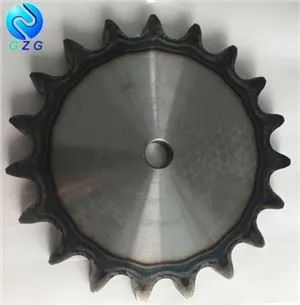

Find big plate wheel sprockets here, 100-160(20A-32A). Moreover, we provide sprockets bigger than 160, such as 200, 240. If you are looking for bigger sprockets or the dimension on my website doesn't meet your persuit, please let us know, we are glad to help.

1. Piñón de rueda de placa ANSI 100 (20A-1-2)

z	Delaware	doble penetración	SIMPLE		DÚPLEX		ANSI 100
z	Delaware	doble penetración	D1	Kg	D2	Kg	20A-1-2
8	96.0	82.96	16		20		Sprocket	milímetro
9	106.5	92.84	16		20		Radio del diente r3	33.5
10	117.0	102.74	16		20		Ancho del radio C	4
11	127.0	112.68	20		25		Ancho de diente B1	17.7
12	137.0	122.68	20		25		Ancho de diente b1	17.1
13	147.5	132.65	20		25		Ancho de diente B2	52.9
14	157.6	142.68	20		25		Cadena	milímetro
15	167.7	152.72	20		25		Terreno de juego	31.75
16	177.7	162.75	20		30		Ancho interno	19.05
17	187.7	172.78	20	2.96	30		Roller Φ	19.05
18	197.8	182.85	20	3.28	30
19	207.9	192.91	20		30
20	217.9	202.98	20		30
21	228.0	213.04	25	4.62	30
22	238.1	223.11	25		30
23	248.2	233.17	25		30
24	258.3	243.23	25		30
25	268.4	253.33	25		30
26	278.4	263.40	30		30
27	288.5	273.48	30		30
28	298.5	283.56	30		30
29	308.6	293.65	30		30
30	318.7	303.75	30		30
31	328.8	313.85	30		30
32	338.9	323.91	30		30
33	349.0	334.01	30		30
34	359.1	344.10	30		30
35	369.2	354.20	30		30
36	379.2	365.30	30		30
37	389.3	374.39	30		30
38	399.4	384.49	30		30
39	409.5	394.59	30		30
40	419.6	404.66	30		30
41	430.7	414.78	30		30
42	440.8	424.88	30		30
43	450.9	434.97	30		30
44	461.0	445.07	30		30
45	471.1	455.17	30		30
46	481.2	465.26	30		30
47	491.3	475.36	30		30
48	501.4	485.46	30		30
49	511.5	495.55	30		30
50	521.6	505.65	30		30
51	531.7	515.75	30		30
52	541.8	525.84	30		30
53	551.9	535.94	30		30
54	562.0	546.07	30		30
55	572.1	556.16	30		30
56	582.2	566.26	30		30
57	592.3	576.36	30		30
58	602.4	586.45	30		30
59	612.5	596.55	30		30
60	622.6	606.65	30		30
62	642.8	626.87	30		30
64	663.0	647.06	30		30
65	673.1	657.16	30		30
66	683.2	667.26	30		30
68	703.4	687.48	30		30
70	723.6	707.67	30		30
72	743.8	729.90	30		30
75	774.2	758.19	30		30
76	784.3	768.32	30		30
80	824.7	808.72	30		30
85	875.2	859.25	30		30
90	925.7	909.76	30		30
95	976.2	960.28	30		30
100	1026.7	1010.79	30		30
114	1168.2	1152.26	30		40

2. Rueda dentada de placa ANSI 120 (24A-1-2)

z	Delaware	doble penetración	SIMPLE		DÚPLEX		ANSI 120
z	Delaware	doble penetración	D1	Kg	D2	Kg	24A-1-2
8	113.0	99.55	20		25		Sprocket	milímetro
9	125.0	111.40	20	1.47	25		Radio del diente r3	40.5
10	137.0	123.29	20	1.85	25		Ancho del radio C	4.8
11	149.0	135.21	25	2.24	25		Ancho de diente B1	23.5
12	161.0	147.22	25	2.71	25		Ancho de diente b1	22.9
13	173.0	159.18	25	3.22	25		Ancho de diente B2	68.3
14	185.0	171.22	25	3.68	25		Cadena	milímetro
15	197.0	183.26	25	4.34	25		Terreno de juego	38.1
16	209.0	195.30	25	4.88	30		Ancho interno	25.4
17	221.0	207.34	25	5.69	30		Roller Φ	22.23
18	233.0	219.42	25	6.29	30
19	245.5	231.49	25	6.92	30
20	257.5	243.57	25	7.95	30
21	270.5	255.65	30		30
22	282.5	267.73	30		30
23	294.5	279.80	30		30
24	307.0	291.88	30		30
25	319.0	304.00	30	12.25	30
26	331.0	316.08	30		30
27	343.0	328.19	30		30
28	355.0	340.27	30		30
29	367.5	352.38	30		30
30	379.5	364.50	30		30
31	391.5	376.62	30		30
32	403.5	388.69	30		30
33	415.5	400.81	30		30
34	428.0	412.93	30		30
35	440.0	425.04	30		30
36	452.0	437.16	30		30
37	464.0	449.27	30		30
38	476.5	461.39	30		30
39	488.5	473.50	30		30
40	501.5	485.62	30		30
41	513.5	497.74	30		30
42	525.5	509.85	30		30
43	538.0	521.97	30		30
44	550.0	534.08	30		30
45	562.0	546.20	30		30
46	574.0	558.32	30		30
47	586.5	570.43	30		30
48	598.5	582.55	30		30
49	610.5	594.66	30		30
50	622.5	606.78	30		30
51	635.0	618.89	30		40
52	647.0	631.01	30		40
53	659.0	643.13	30		40
54	671.0	655.25	30		40
55	683.5	667.40	30		40
56	695.5	679.50	30		40
57	707.5	691.63	30		40
58	719.5	703.74	30		40
59	731.5	715.86	30		40
60	745.0	727.97	40		40
62	769.0	752.24	40		40
64	793.5	776.48	40		40
65	805.5	788.59	40		40
66	817.5	800.71	40		40
68	842.0	824.98	40		40
70	866.0	949.21	40		40
72	890.5	973.48	40		40
75	926.5	909.83	40		40
76	939.0	921.98	40		40
80	987.5	970.44	40		40
85	1048.0	1031.10	40		40
90	1108.0	1091.71	40		40

3. Rueda dentada de placa ANSI 140 (28A-1-2)

z	Delaware	doble penetración	SIMPLE		DÚPLEX		ANSI 140
z	Delaware	doble penetración	D1	Kg	D2	Kg	28A-1-2
8	132.0	116.15	20	1.52	25		Sprocket	milímetro
9	146.0	129.96	20	2.07	25		Radio del diente r3	47.5
10	160.0	143.85	20	2.59	25		Ancho del radio C	5.8
11	174.0	157.77	25	3.04	25		Ancho de diente B1	23.5
12	188.0	171.74	25	3.72	25		Ancho de diente b1	22.9
13	204.0	185.75	25	4.37	25		Ancho de diente B2	71.9
14	218.0	199.76	25	5.16	25		Cadena	milímetro
15	232.0	213.79	25	5.92	25		Terreno de juego	44.45
16	246.0	227.84	30	6.85	30		Ancho interno	25.4
17	260.0	241.90	30	7.68	30		Roller Φ	25.4
18	274.0	255.98	30		30
19	289.0	270.06	30		30
20	303.0	284.15	30		30
21	317.0	198.24	30		30
22	331.0	312.34	30		30
23	345.0	326.44	30		30
24	359.0	340.55	30		30
25	373.0	354.66	30		30
26	387.0	368.77	30		30
27	401.0	382.88	30		30
28	416.0	397.00	30		30
29	430.0	411.12	30		30
30	444.0	425.24	30		30
31	458.0	439.37	30		30
32	172.0	453.49	30		30
33	486.0	467.62	30		30
34	500.0	481.75	30		30
35	514.0	495.88	30		30
36	529.0	510.01	30		30
37	543.0	524.13	30		30
38	557.0	538.27	30		30
39	571.0	552.40	30		30
40	585.0	566.54	30		30
45	656.0	637.22	30		30
50	726.0	707.91	30		30
57	825.0	806.90	30		30
60	869.0	849.32	30		30
76	1095.0	1075.62	30		30

4. Rueda dentada de placa ANSI 160 (32A-1-2)

z	Delaware	doble penetración	SIMPLE		DÚPLEX		ANSI 160
z	Delaware	doble penetración	D1	Kg	D2	Kg	32A-1-2
8	153.2	132.69	25		25		Sprocket	milímetro
9	169.0	148.54	25		25		Radio del diente r3	54
10	185.0	164.44	25		25		Ancho del radio C	7
11	200.8	180.34	30		30		Ancho de diente B1	29.3
12	216.8	196.29	30		30		Ancho de diente b1	28.6
13	232.8	212.29	30		30		Ancho de diente B2	87.5
14	248.8	228.29	30		30		Cadena	milímetro
15	264.8	244.30	30		30		Terreno de juego	50.8
16	280.9	260.40	30		30		Ancho interno	30.99
17	296.9	276.40	30		30		Roller Φ	28.58
18	313.0	292.55	30		30
19	329.1	308.66	30		30
20	345.2	324.71	30		30
21	361.3	340.82	30		30
22	377.5	356.98	30		30
23	393.6	373.08	30		30
24	409.7	389.18	30		30
25	425.8	405.33	30		30
26	441.9	421.44	30		30
27	458.1	437.59	30		30
28	474.2	453.69	30		30
29	490.4	469.90	30		30
30	506.5	486.00	30		30
32	538.8	518.26	30		30
35	589.5	566.72	30		30
38	635.5	615.14	30		30
40	670.3	647.49	40		40
45	751.0	728.25	40		40
50	931.8	809.04	40		40
57	945.0	922.16	40		40
60	993.4	970.65	40		40
76	1252.0	1229.30	40		40
